Heavy-Duty Sewage Treatment System: Complete Engineering Solutions
1. Product Overview & Engineering Standard
Our heavy-duty wastewater treatment equipment is engineered specifically for high-strength, toxic, and complex industrial effluent. Unlike standard domestic systems, this multi-stage physical-chemical and advanced biological plant breaks down hard-to-treat chemical pollutants, heavy metals, and emulsified oils.
The equipment purifies heavily fouled factory discharge, turning it into compliant water for surface disposal or high-quality recycled water for internal factory reuse. The entire system features a robust, modular design that integrates smoothly into active industrial chemical lines, textile mills, and food manufacturing plants.
2. Specialized Technical Features & Core Modules
🔹 High-Efficiency Dissolved Air Flotation (DAF) Unit
Uses micro-bubble technology to float suspended matters.
Generates bubbles sized 20 to 40 microns.
Removes 95% of free-floating oils, fats, and greases (FOG).
Separates sticky chemical flocs and light industrial fibers quickly.
Reduces chemical consumption by 30% via optimized static mixers.
Minimizes initial organic loading before downstream biological stages.
🔹 Advanced Anaerobic & Aerobic Bio-Reactors
Features high-rate anaerobic internal circulation (IC) technology.
Destroys high-concentration chemical bonds and complex toxic toxins.
Handles Chemical Oxygen Demand (COD) inputs up to 10,000 mg/L.
Generates low excess sludge volume, reducing disposal costs.

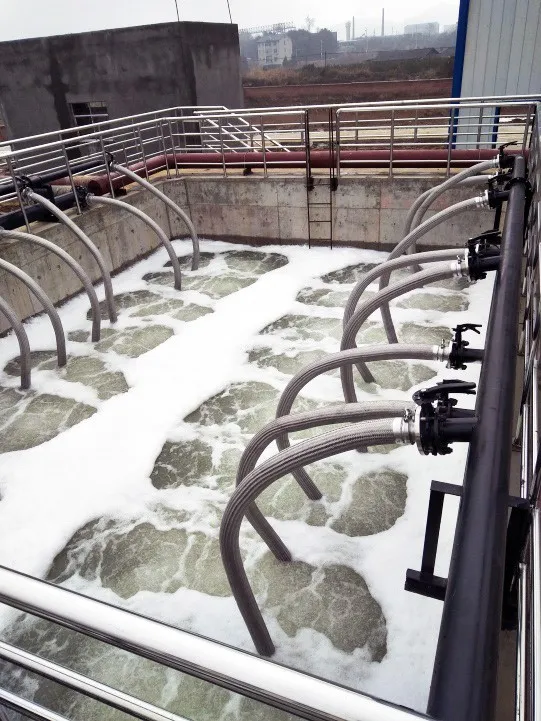

Utilizes high-efficiency fine bubble diffusers for maximum oxygen transfer.
Promotes stable, dense microbial growth to digest dissolved organic waste.
🔹 Ultrafiltration (UF) & Reverse Osmosis (RO) Deep Purification
Integrates robust multi-bore UF membrane pre-treatment loops.
Protects downstream RO elements from fouling and scaling.
RO stage forces water through semi-permeable membranes under pressure.
Rejects 99.2% of dissolved salts, heavy metal ions, and minerals.
Produces purified water with electrical conductivity below 100 µS/cm.
Delivers high-purity soft water ready for boiler feed or cooling towers.
🔹 Automated Chemical Dosing & Sludge Conditioning
Equipped with digital electromagnetic metering pumps.
Automatically adjusts coagulant and flocculant dosages based on flow.
Features integrated pH neutralization sensors and chemical mixing tanks.
Connects directly to automated heavy-duty filter presses for sludge cake drying.
Ensures completely dry sludge cake output for safe, low-cost disposal.

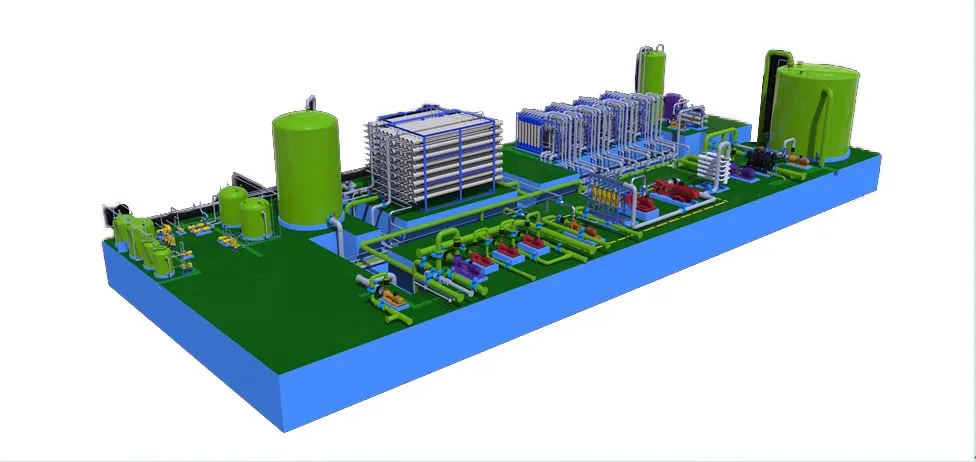

3. Full Technical Parameters & Structural Layout
3. Verified Technical Specifications
This wastewater treatment equipment is configured based on your specific factory water test data. Below are the verified metrics for our standard heavy-industrial models:
| Technical Parameter | Model300 (Chemical) | Model 1200 (Textile) | Heavy Custom Plant |
|---|---|---|---|
| Daily Output Capacity | 300 \(m^{3}\)/day | 1,200 \(m^{3}\)/day | Up to 15,000+ \(m^{3}\)/day |
| Maximum Inlet COD | ≤ 5,000 mg/L | ≤ 3,000 mg/L | Handles up to 12,000 mg/L |
| Output COD (After RO) | ≤ 30 mg/L | ≤ 40 mg/L | Near Zero/Pure Water |
| Oil & Grease Removal | ≥ 98% | ≥ 95% | Up to 99.5% |
| Heavy Metals Rejection | ≥ 99% | ≥ 98% | Complete Membrane Barrier |
| Structural Material | SUS316L Stainless Steel | Epoxy Coated Heavy Carbon Steel | Dual-Phase Steel / Alloys |
| Filter Clean Cycle | Automatic Self-Cleaning | High-Pressure Backwash | Intelligent Differential Pressure |
| Water Recovery Rate | 65% to 75% | 70% to 80% | Up to 90% (ZLD Configuration) |
4. Primary Industrial Application Fields
Our advanced wastewater treatment equipment handles the most demanding industrial pollution challenges globally:
Chemical & Petrochemical Refining: Treats highly toxic process water containing volatile organic compounds, dissolved hydrocarbons, phenols, and acidic residues.
Textile, Printing & Dyeing Factories: Breaks down complex synthetic azo dyes, fixatives, and sizing chemicals. Clears heavy color tints, allowing water recycling.
Food, Beverage & Slaughterhouse Processing: Handles high-density organic loads, blood proteins, emulsified animal starches, vegetable oils, and cleaning detergents.
Electroplating & Surface Finishing Shops: Precipitates dangerous heavy metal ions including chrome, nickel, copper, and zinc safely out of rinse water streams.
Pharmaceutical & Cosmetic Production: Eliminates active chemical ingredients, antibiotic traces, and surfactant compounds before discharging to municipal sewers.
5. Direct Manufacturer Advantages: Why Buy From Us?
Investing in major environmental machinery requires a trustworthy partner. Our factory provides unmatched production capacity, verified quality standards, and full lifecycle support:
✔️ 15+ Years of Verified Production Experience
We own a modern 35,000 square-meter heavy manufacturing workshop. Our team includes 20 senior environmental engineers, 50 certified professional welders, and dedicated quality inspectors. We have delivered over 1,600 working water projects across 80 countries worldwide. We have the scale and experience to handle complex, high-volume orders seamlessly.
✔️ Compliance with Strict International Standards
Our factory strictly complies with ISO9001:2015 quality management and ISO14001 environmental safety systems. Every wastewater treatment equipment carries an official CE certificate for European market entry. We use ultrasonic machinery to test 100% of steel welds before shipping, ensuring zero structural leaks.
✔️ Complete Turnkey Engineering Services
We do not just box up hardware; we deliver operational success. Our engineering team provides a full suite of services at no extra stress to you: free laboratory testing of your raw wastewater samples, custom 3D CAD civil engineering layouts, on-site installation guidance by our overseas technical field engineers, and simple English training tutorials for your local operators.
✔️ Lifetime Support with Massive Spare Parts Stock
We ensure your system never suffers from extended downtime. Our centralized warehouse maintains a huge inventory of critical components, including replacement membrane sheets, chemical dosing pumps, air diffusers, and sensor probes, all ready for rapid international dispatch. Every client enjoys lifetime technical support with free 24/7 online video troubleshooting.
6. Real-World Case Study: Zero Fines for a Chemical Plant
The Industrial Client: A large-scale resin and chemical manufacturing plant.
The Effluent Problem: The factory generated process wastewater containing high levels of non-biodegradable chemicals and phenols. Raw water COD spiked frequently to 4,500 mg/L. Local authorities issued suspension notices due to river pollution.
Our Engineered Solution: We custom-built a 400 \(m^{3}\)/day industrial wastewater treatment equipment system. The custom package combined chemical coagulation, a DAF micro-bubble separator, an anaerobic bio-bed, and final Reverse Osmosis (RO) filtration.
The Final Outcome: The factory achieved complete compliance within two weeks of commissioning. Effluent COD dropped below 40 mg/L, totally avoiding heavy environmental fines. Furthermore, the plant now recycles 75% of the clean RO output back into production washing lines, slashing raw water consumption significantly.
7. Frequently Asked Questions (FAQ)
Q1: Can your sewage treatment system handle sudden spikes in daily water flow?
Yes. Every system includes an integrated equalization tank mechanism. Smart PLC liquid-level sensors manage the internal flow rate. This configuration balances high morning or evening water surges. It protects the helpful bacteria inside the biological tank from washing away, ensuring stable performance.
Q2: What is the standard production timeline for a custom system?
Standard skid-mounted setups (under 200 \(m^{3}\)/day) take 25 to 30 days to build. Large, high-capacity, or highly customized industrial container plants require 45 to 60 days. This timeline includes structural fabrication, interior piping assembly, PLC electrical programming, and final hydraulic pressure tests.
Q3: How much daily work does it take to maintain this machine?
Very little. Because the system uses fully automated PLC control loops, it runs mostly unattended. Your local factory workers do not need advanced technical training. They only need to spend 15 to 30 minutes a day conducting basic visual checks, verifying chemical tank levels, and writing down sensor numbers.

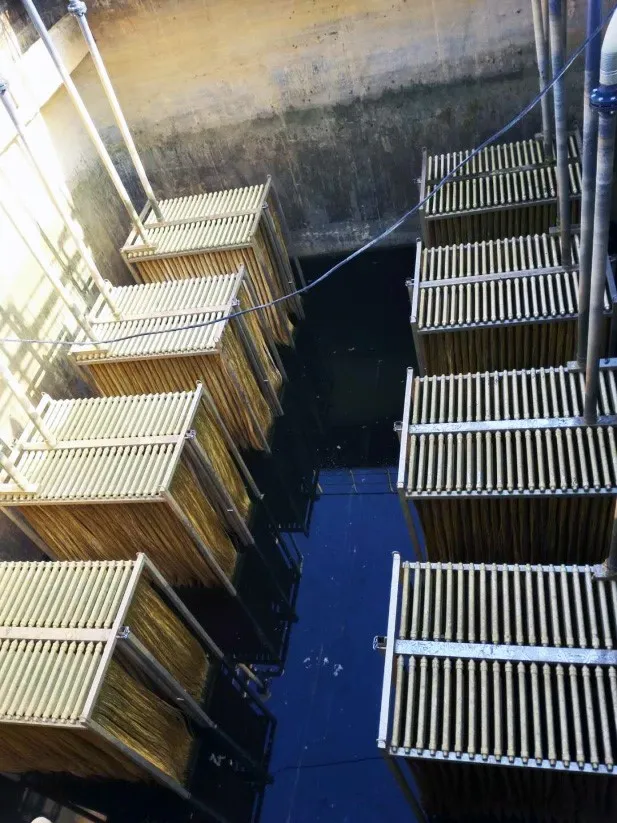

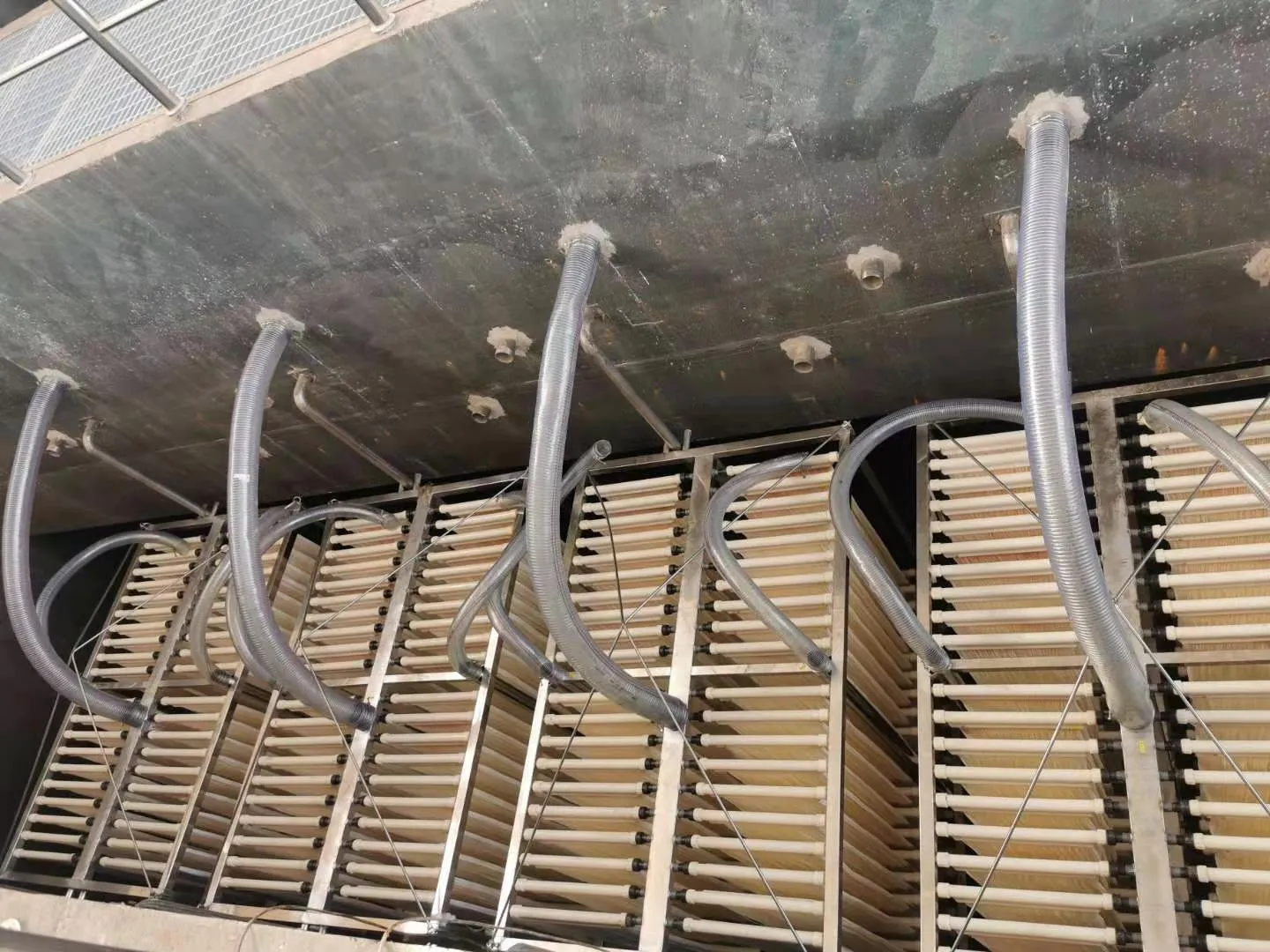

Q4: How long do the integrated MBR membrane filters last?
Under standard operating conditions, our high-quality PVDF membrane sheets last between 3 to 5 years. The smart PLC runs regular, automated cleanings using tiny air bubbles and backwash fluids. This routine keeps the filter pores clear and extends the module's operational lifespan.
